精密 QCW 750W

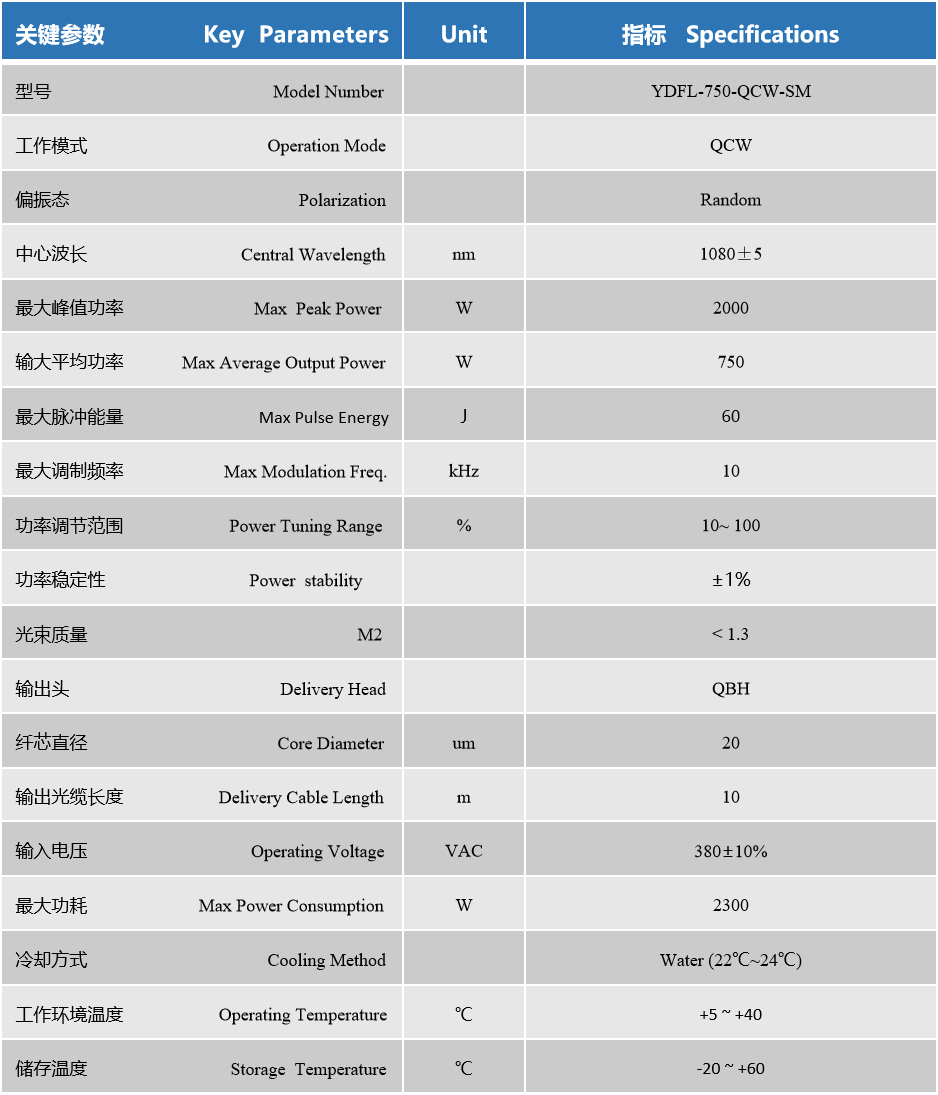

关键参数              Key  Parameters

Unit

指标   Specifications

型号                                          Model Number

YDFL-750-QCW-SM

工作模式                                     Operation Mode

QCW

偏振态                                               Polarization

Random

中心波长                             Central Wavelength

nm

1080±5

最大峰值功率                             Max  Peak Power

W

2000

输大平均功率             Max Average Output Power

W

750

最大脉冲能量                                 Max Pulse Energy

J

60

最大调制频率                   Max Modulation Freq.

kHz

10

功率调节范围                    Power Tuning Range

%

10~ 100

功率稳定性                            Power  stability

±1%

光束质量                                                            M2

< 1.3

输出头                                        Delivery Head

QBH

纤芯直径                                    Core Diameter

um

20

输出光缆长度                  Delivery Cable Length

m

10

输入电压                               Operating Voltage

VAC

380±10%

最大功耗                     Max Power Consumption

W

2300

冷却方式                                  Cooling Method

Water (22℃~24℃)

工作环境温度                  Operating Temperature

℃

+5 ~ +40

储存温度                           Storage  Temperature

℃

-20 ~ +60
